GPON OLT

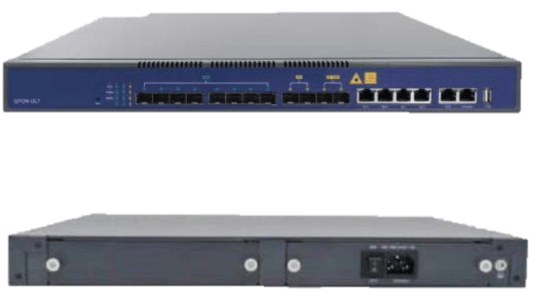

The C-COR GPON OLTs are high performance 1RU GPON OLT solutions offering economical PON networking via 8 SFP ports. Each of the 8 GPON ports can be provisioned with user SFP modules and support a maximum PON split of 128 on each port giving a maximum 1,024 split across the OLT. The OLTs feature dual power feed options with intelligent fan management for efficient cooling.
The C-COR OLT units are easy to install and operate with front port access and system configuration via Web, SNMP or Command Line Interface.
Extensive layer 2 / 3 switching and routing is offered with support for 4,096 VLANs, 16/32 K MAC, QinQ, tagging, LACP, QOS, ACL, Port Isolation, IGMP snooping, 256/2,048 IP multicast, DHCP, ARP proxy and static and dynamic routing.
GPON ONU/T
The C-COR CGR8ONU GPON ONU with reverse Power Over Ethernet (POE) is a high-performance optical GPON ONU solution offering economical endpoint connection via 8 RJ45 LAN ports.
The reverse POE option allows the ONU unit to be located conveniently to allow distribution of up to 8 Cat5 Ethernet connections allowing one or more LAN ports to power the ONU unit using POE. The total power consumption of the ONU unit is a low 5 Watts.

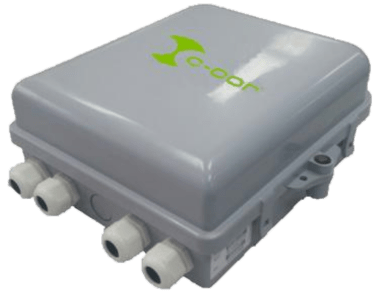

The high impact ABS enclosure in Telco Grey is provided with anti tamper screw closing, wall mounting screw points and swing out access to fibre management board behind the active board. The enclosure is designed to resist ingress of dust and water splashes including rain with a nominal IP54 rating.
The C-COR CGR8ONU ONU is easy to install and operate with easy mechanical access and system configuration via Web, SNMP or Command Line Interface.
